VT Series
- 15 YEAR LIFESPAN
- OPTIONAL BMS ANTI-THEFT SOLUTION
- EASY INSTALLATION & MAINTENANCE
- INGRESS PROTECTION RATING 20

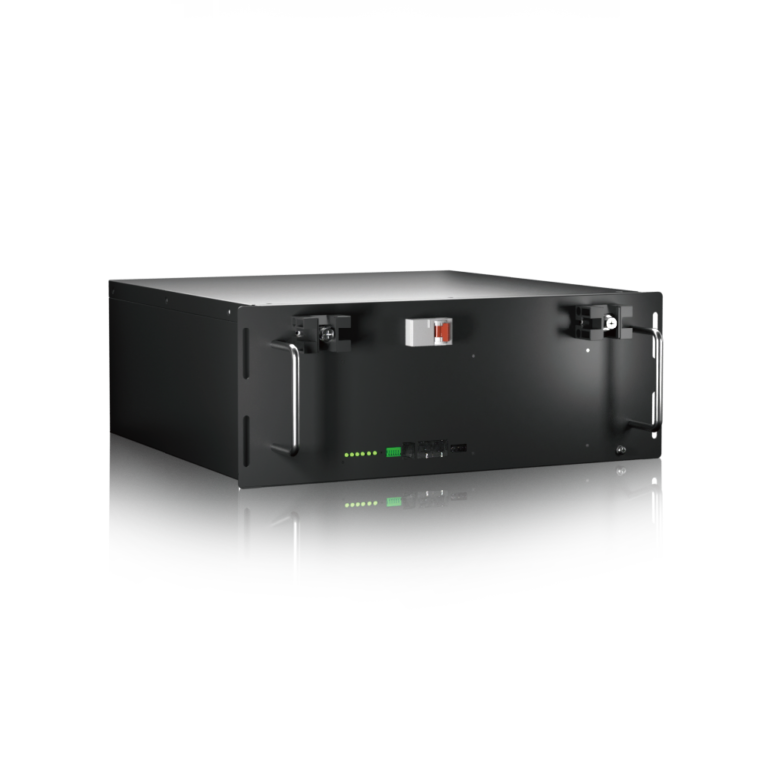

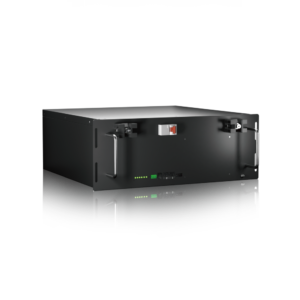

VT48200

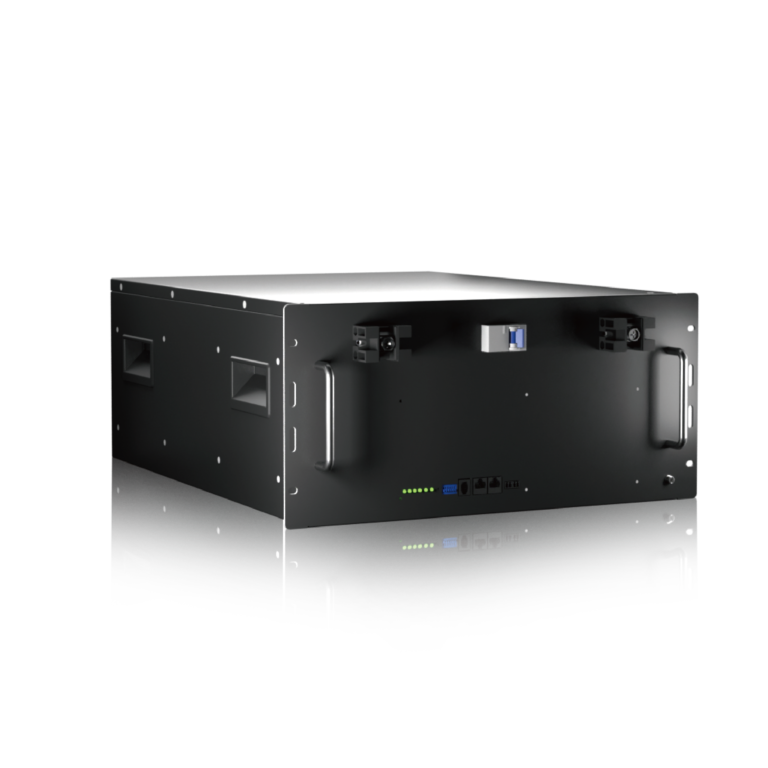

VT48300
VT SERIES
Power for
your telecom
operations
Ingress Protection Rating 20
Protect your equipment from solid objects with Ingress Protection rating 20, ideal for indoor use and providing protection against solid particles.
LFP Battery
Experience high performance and reliable energy storage with Lithium-Ion Phosphate Battery technology, known for its long lifespan, fast charging capabilities, and improved safety features.
Easy Installation
The battery module comes ready to go from the very start, meaning you can minimize any downtime in your communications.
How they perform.
SPECIFICATION
VT48200
VT48300
Cell Type
LFP
LFP
Nominal Energy
9.6kWh
14.4kWh
Nominal Capacity
200Ah
300Ah
Nominal Voltage
48V
48V
Operating Voltage Range
40.5V~54.0V
40.5V~54.0V
Dimensions(W*H*D)
444*222*490mm
–
Weight
78kg
100kg
IP
IP20
IP20
Expansion
15
15
Communication
RS485/CAN/SNMP/Dry contact
RS485/CAN/SNMP/Dry contact
Cycle Life
3500@80% DOD, 25℃
3500@80% DOD, 25℃
Referenced Standard
UN38.3, IEC 62619, CE-EMC
UN38.3, IEC 62619, CE-EMC
